Details:

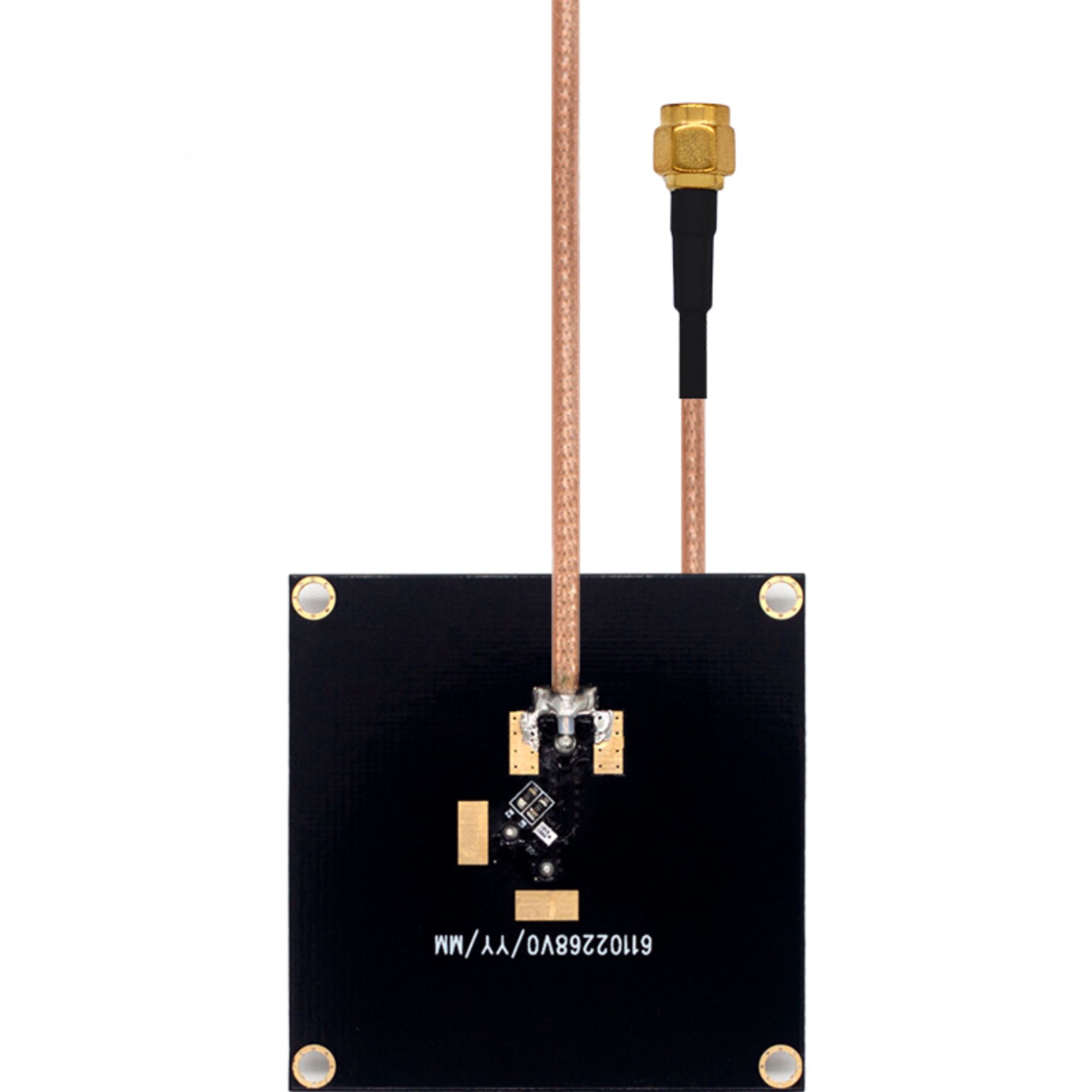

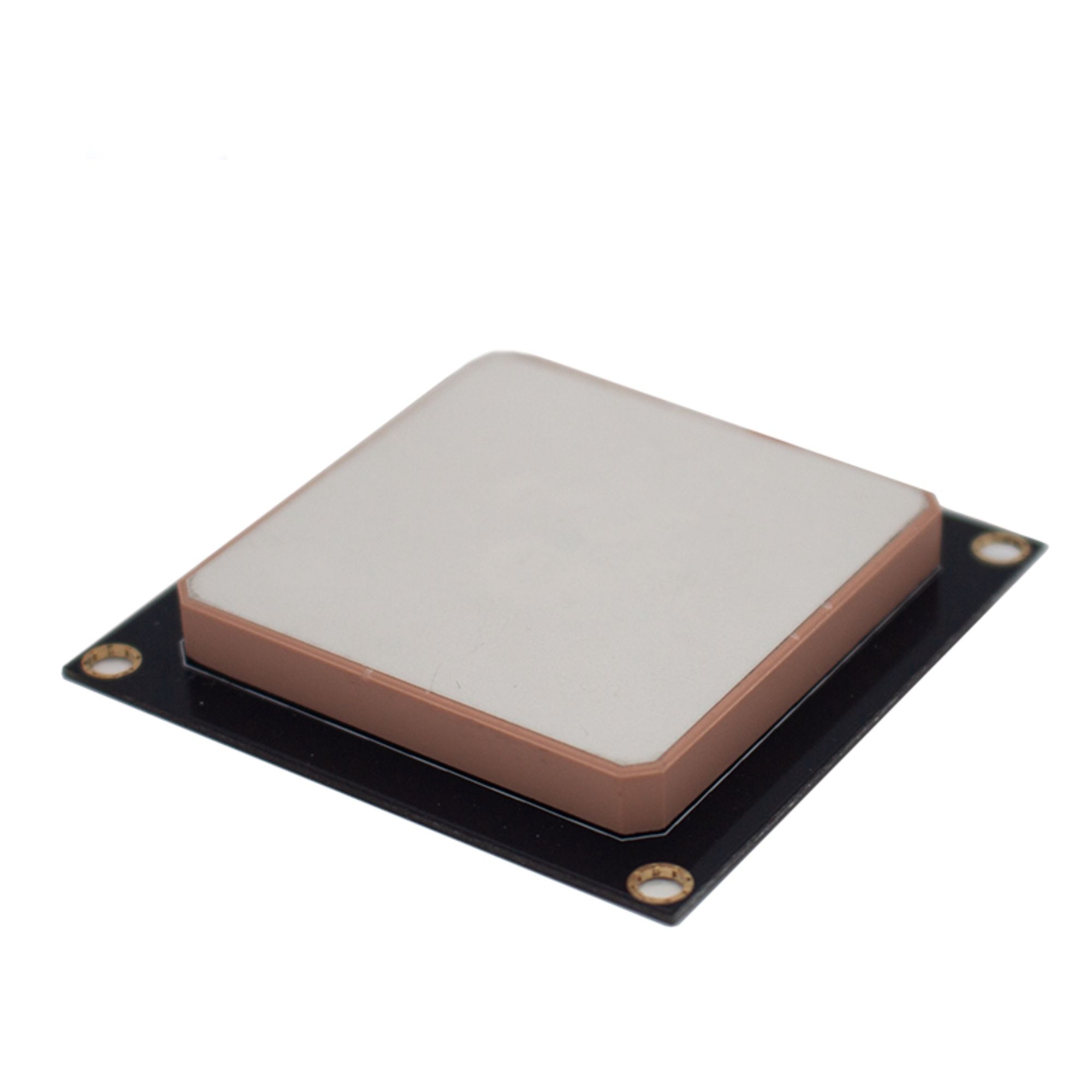

This ceramic antenna is designed to embedded handheld reader application, PCB board structure, small in size, with cable, easily installed.
FEATURES
♦ UHF RFID Reader Circular Polarization Antenna
♦ Microstrip ceramics Antenna with RHCP
♦ Small antenna element
♦ Low Weight, Compact Size
♦ Easy application and Save development time
Parameter:
|
Product name |
RFID antenna |
|
Cable |
RG316 |
|
Connector |
SMA |
|
Frequency |
915±6MHz |
|
Working frequency |
902MHz~928MHz |
|
Gain |
2.0 dBi |
|
Weight |
<100g |
|
Size |
50*50*9.0 |
|
Ceramic size |
40*40*5 |
|
V.S.W.R |
<2 |
|
Polarization |
RHCP |
|
impedance |
50Ω |
|
bandwidth |
>10MHz |
|
Working Temp |
-40℃~+85℃ |
|
Humidity |
10% to 95% RH |
